Product description

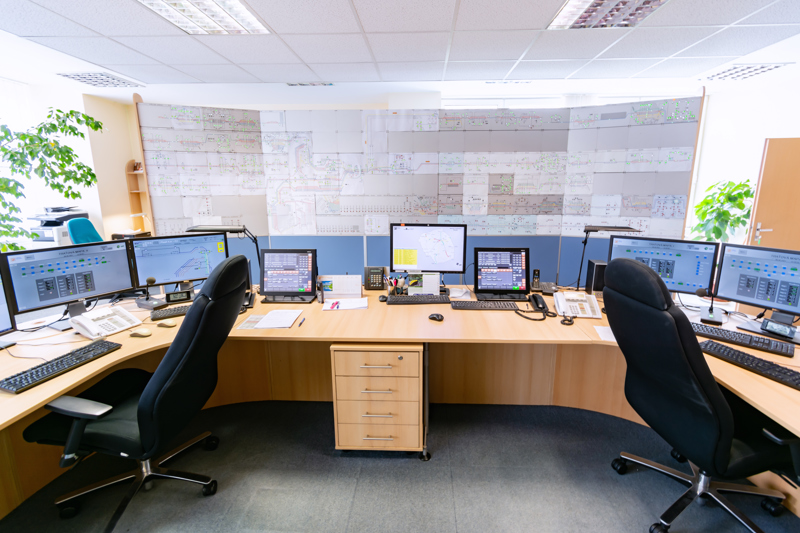

Dispatcher Control Technology remotely operates traction disconnectors and controls traction substations along the track. The system is implemented on Reliance and WonderWare platforms at the visualization layer and on the SAIA Burges platform at the PLC layer. The PLC collects data from the local substation. Subsequently, the data is transmitted through the technological data network by prescribed protocol according to ČSN EN 60870-5-104 into concentrators located at the electricity control room. Local controls are installed in their respective station´s office. Central remote operation is handled from the electricity control room of SŽDC´s regional directorate.

Railway map
Technology
Faults

Technical specifications

Utilized HW:

  • Advantech IPC 6806, Dell, HP
  • TECON MT8…
  • SAIA PCD2, 3

Utilized SW:

  • OPC Server SAIA S-Bus
  • Visualization programming environment - Reliance 4 Control

Communication protocols:

  • Data acquisition by RS485
  • Data acquisition by ethernet
  • Data acquisition by IEC 60870-5-103 protocol
  • Data supplied by IEC 60870-5-104 protocol

Topology diagram

Operator station = Operátorská stanice

Data concentrator = Koncentrátor dat

Technological data network = Technologická datová síť

Optical fiber = Optika

Controlled systems

  • Switching stations (SS) – 27 kV substation control
  • Railway stations – traction disconnectors (TD) operation
  • Traction transformer stations (TTS) – TD , R27 kV, R110 kV control
  • Preheating stations (PS)
  • Low-voltage substations
  • Electricity control rooms (ECR) – SS, TTS, LVS, TD, R27 kV, R110 kV, electrical railway switch heating, railway station lighting

Project documentation

Project documentation from preliminary documentation for execution to final as-built documentation is an integral part of our deliveries. We also provide support to head planners during the design phase of a project. We employ modern design tools, namely ELCAD, Engineering Base and AutoCAD.

Benefits for the customer

  • HW diagnostics, predictive maintenance
  • Centralization and online management of technological systems
  • Maintenance optimization
  • Online remote access through the web interface
  • User-friendly environment
  • Control and diagnostics
  • Flexible solutions, tailor-made to meet the individual needs of the customer
  • Operation costs savings
  • Prediction lowers costs and complications tied to correcting faults - „foreseeing means avoiding emergencies“
